Why Waterless® No-Flush™ Urinals?

Waterless No Flush Urinal

The world has changed. Water is no longer abundantly available, even in "First World" countries like the USA. Dwindling natural resources, climate change, the need to reduce and/or conserve budget money plus behavioural changes have led to an increased awareness, desire and need to install water conserving fixtures.


No-Flush™ urinals work completely without water or flush valves. Flushed fixture overflows and leaks are high priority items with maintenance departments.  Waterless® urinals are the absolute best long term solution for water efficiency and maintenance reduction.

Technology

Waterless No-Flush™ urinals resemble conventional fixtures, and easily replace them. They install to the regular urinal 2” (52 mm) waste line (for 1 ½” (38 mm) waste lines, use a reducer bushing). They eliminate flush water supply lines. Flush valves are completely eliminated as well. No handles to touch, no sensors to install or adjust, no moving parts at all!


The urinal bowl surfaces are smooth and urine repellent; urine is 95% liquid and its drainage is effected without flush water through gravity. Daily cleaning procedures are the same as for flushed urinals, yet save time per urinal.


The conventional water-filled urinal trap is replaced by a disposable EcoTrap® inserted in the urinal drain outlet of our urinals. It holds a layer of the proprietary immiscible BlueSeal® liquid, floating on top of a urine layer. The combination of our EcoTrap and the covering BlueSeal blocks out sewer gases and urine odors from the restroom. 90 ML dose of BlueSeal lasts up to 1500 uses, replacing from 1000 and up to 4500 Liters of quality potable flush water at each fill!!


Note: The cleaning of Waterless urinals is effected the same way as cleaning conventional urinals. Replenishments of BlueSeal are simple and accurately measured with a Measuring Cup. Fill the Measuring Cup and Pour contents directly into the holes of the EcoTrap.


Drain lines are free of hard encrustations. They are easily accessed by removing the EcoTrap with the special X-Traptor® tool.
BlueSeal® is biodegradable and the EcoTrap® is recyclable.

  Maintenance instruction

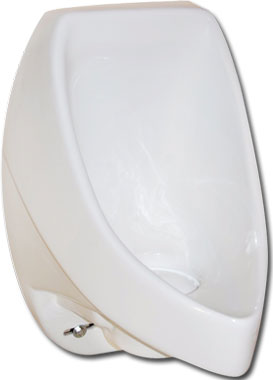

Baja Ceremic Wall Drain Model

Baja

BAJA™ #2104

Vitreous China


Slick & Little. Making BIG Impressions. Classic Design.

14.0"W x 21.5"L x 14.5"D (356MM x 546MM x 368MM)
ADA Compliant
Complies with ANSI Z124.9, A112.19.19, A117, CSA® others EcoTrap® Inside!!

Urinal comes with two EcoTrap® inserts, mounting hardware, brass flange, gasket and installation instructions.
Available in standard sanitary white or color. Please inquire.


  Enquiry

WATERLESS FEATURES

All wall drain No-Flush™ urinal models install like flushed urinals to the to the standard 2” (52mm) drain line via a gasket and flange. No adaptors needed!

All wall drain units have a closed urinal bottom to avoid vandalism. No need to buy separate costly bottom covers.

All of our urinals have a full 2” (52mm) interior drain line. This allows easy line cleaning and access if needed. Urinal does not need to be removed from wall for snaking. Saves time!

No gaskets or O-rings needed on EcoTrap® inserts. Simple press fit!

The EcoTrap® unit removes completely for servicing and change-out. No taking traps apart for cleaning and to reassemble!


PRODUCT INFORMATION AND SPECIFICATIONS
  Maintenance instruction   Enquiry

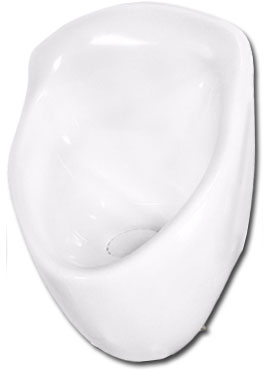

Anza FRP Wall Drain

  • High Performance Composite (HPC)
  • Modern, Leading-Edge Design! Covers most urinal footprints.
  • 16.25"W x 27.0"L x 14.0"D (413MM x 686MM x 356MM)
  • ADA Compliant
  • Complies with ANSI Z124.9,  A117, CSA® others
  • EcoTrap® Inside!!
  • Urinal comes with two EcoTrap® inserts
  • Available in standard sanitary white or color. Please inquire.
Anza

WATERLESS FEATURES

All wall drain No-Flush™ urinal models install like flushed urinals to the to the standard 2” (52mm) drain line via a gasket and flange. No adaptors needed!


All wall drain units have a closed urinal bottom to avoid vandalism. No need to buy separate costly bottom covers.


All of our urinals have a full 2” (52mm) interior drain line. This allows easy line cleaning and access if needed. Urinal does not need to be removed from wall for snaking. Saves time!


No gaskets or O-rings needed on EcoTrap® inserts. Simple pressfit!


The EcoTrap® unit removes completely for servicing and change-out. No taking traps apart for cleaning and to reassemble!


PRODUCT INFORMATION AND SPECIFICATIONS
  Maintenance instruction   Enquiry

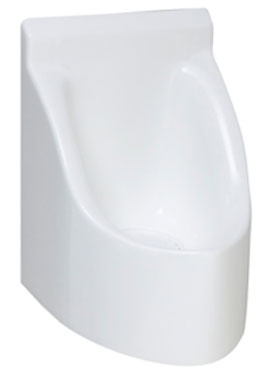

Delcasa FRP Bottom Drain

  • DEL CASA #2902
  • High Performance Composite (HPC)
  • For home, mobile or space saving applications.
  • 11.0"W x 15.0"L x 12.8"D (279MM x 381MM x 325MM)
  • Bottom Outlet
  • Complies with ANSI Z124.9,  A117, CSA® others
  • EcoTrap® Inside!!
  • Urinal comes with two EcoTrap® inserts, mounting hardware, brass flange, gasket and installation instructions.
  • Available in standard sanitary white or color. Please inquire.
Delcasa

WATERLESS FEATURES

All wall drain No-Flush™ urinal models install like flushed urinals to the to the standard 2” (52mm) drain line via a gasket and flange. No adaptors needed!


All wall drain units have a closed urinal bottom to avoid vandalism. No need to buy separate costly bottom covers.


All of our urinals have a full 2” (52mm) interior drain line. This allows easy line cleaning and access if needed. Urinal does not need to be removed from wall for snaking. Saves time!


No gaskets or O-rings needed on EcoTrap® inserts. Simple pressfit!


The EcoTrap® unit removes completely for servicing and change-out. No taking traps apart for cleaning and to reassemble!


PRODUCT INFORMATION AND SPECIFICATIONS
  Maintenance instruction   Enquiry
